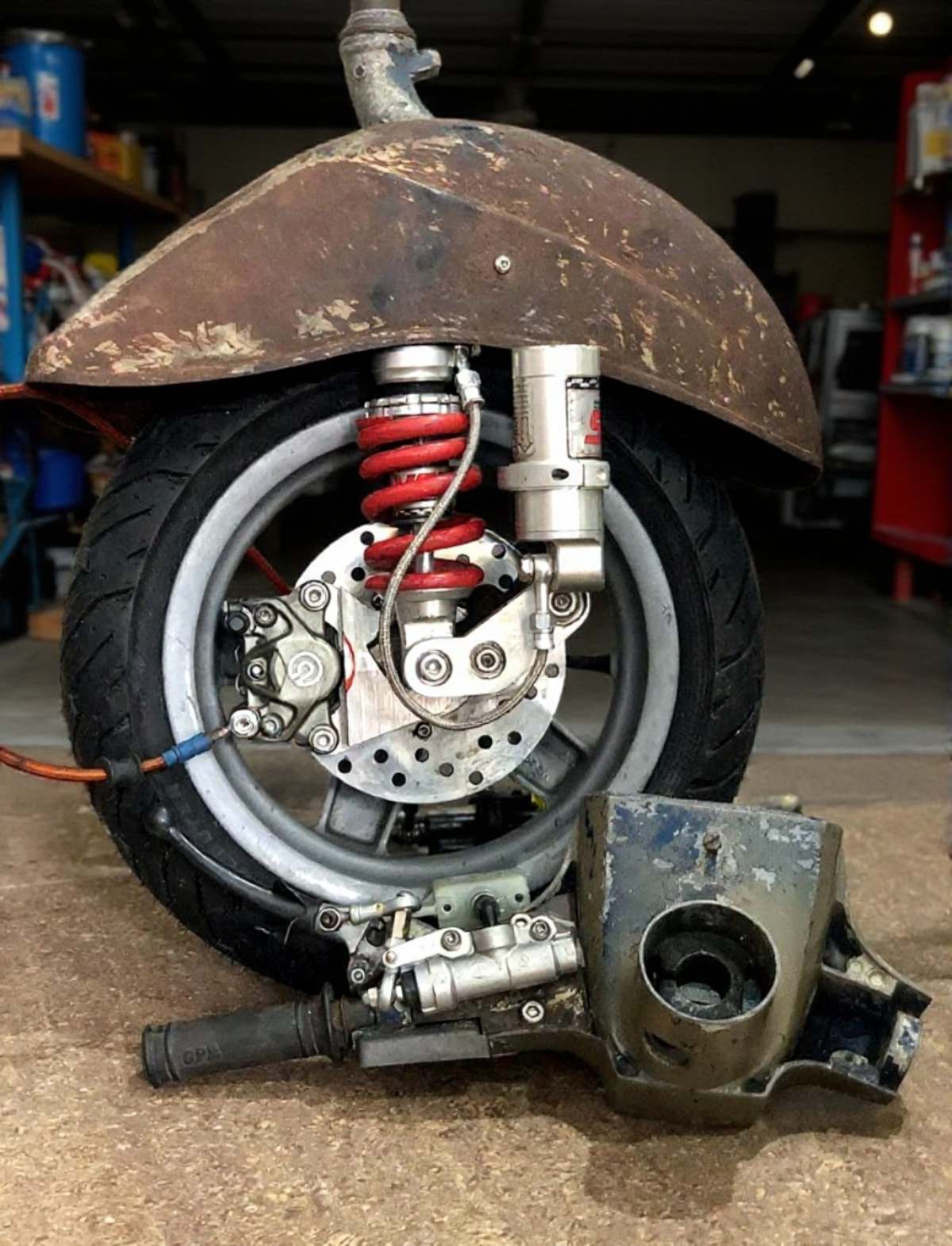

Bolt-On Braking – A Real-World Guide to Fitting Modern Disc Brakes to 1960s Steel Without Bending Your Frame (or Your Brain)

How to drop 70 % braking effort, kill the dreaded 60-mph fade and still look like you did it in 1965.

1. Can You Even Bolt a 2024 Brembo to 1965 Steel?

Short answer: yes – but only after you answer four questions:

Question	Pass/Fail Rule
Wheel/axle size?	12 mm axles need modern hub OR sleeve spacers
Fork lower shape?	Must be parallel & 40 mm+ thick for radial clamp
Master-cylinder pull ratio?	Old 7 mm cable cam ≠ 10 mm hydraulic piston
Frame alignment?	Disc side must stay within 1 mm of hub centre-line

Fail one of these and you're into fabrication territory; pass them and you can stay bolt-on.

2. Pick Your Poison – Three Upgrade Levels

Level	Typical Set-Up	Effort	Feel Gain
1. Plug-&-Play	SIP / ScootRS bolt-on 200 mm disc for Lambretta	2 hrs	40 %
2. Hidden Hydro	12 mm axial caliper, stock drum hub machined	4 hrs	60 %
3. Full Stealth	220 mm floating disc, radial 4-piston, 13 mm radial MC	8 hrs	80 %

3. Level 1 – SIP "Day-Trip" Kit (Lambretta Li/SX Example)

Parts list (£240 all-in):

• 200 mm floating disc (5 bolt)
• Cast-aluminium caliper bracket (anodised black)
• Axle-spacer set (stainless)
• Copper washers + bolts (10.9 grade)

Tools: 13 mm socket, torque wrench (25 Nm), lock-wire pliers.

Steps:

1. Remove wheel, drum, shoes.
2. Slide bracket over axle, index on fork key-way.
3. Bolt disc to hub using supplied 5 × M8 bolts – Loctite 243.
4. Re-fit wheel, torque axle nut 45 Nm, lock-wire bracket bolts.
5. Bleed cable (yes, still cable) – SIP kit keeps mechanical pull so no master-cylinder swap.

Result: 60-0 mph in 32 m vs 48 m stock drum – 40 % improvement with zero frame mods.

4. Level 2 – Hidden Hydro (Vespa PX200 Front)

Goal: hydraulic power but stock drum hub so original wheel stays.

Parts:

• 12 mm axial Grimeca caliper (£90)
• Laser-cut 6 mm bracket (£45)
• Master-cylinder (13 mm) + lever (£70)
• Drum-hub back-plate machined flat (£60 at local engineering shop)

Process:

1. Machine back-plate flat to ±0.1 mm.
2. Tack-weld bracket to back-plate – keep caliper centre-line within 0.5 mm of disc.
3. Heli-arc (TIG) bracket fully – don't MIG: distortion kills alignment.
4. Tap M10 x 1.0 for banjo bolt – run copper pipe inside fork link (hidden).
5. Bleed system, bed pads (10 slow stops from 30 mph).

Braking G: 0.85 g vs 0.55 g drum – 50 % shorter stopping distance; looks stock from 2 m away.

5. Level 3 – Full Stealth Radial (Show-Bike Killer)

For: cutdown racers, café-scoots, "I want Brembo RCS on a 1960 Lambretta" crowd.

Shopping list (£750-900):

• 220 mm floating disc (ISR or Grimeca)
• Radial 4-piston caliper (Brembo GP4-R)
• Radial master-cylinder 13 mm (RCS Corsa Corta)
• Custom 6082-T6 billet bracket (CNC or water-jet)
• Stainless braided line (-3 AN fittings)

Frame work:

• Mill 2 mm off fork lower (radial clamp needs 34 mm parallel section) – do this on a lathe, not a file.
• Weld 6 mm alloy spacer to hub centre – keeps disc in-line when wheel spacers vary.
• Re-align head-stock if disc side is >1 mm out – use frame table and dial gauge.

Result: 0.95 g braking, 1-finger lever, no fade after 5 downhill hairpins – basically 2020 super-bike feel on 1965 steel.

6. Rear-Disc Reality Check

Yes, it's possible – but:

• You need a hub with left-hand disc mount (Lambretta GP200 has space).
• Chain-case must be sectioned or replaced with open primary (race only).
• Master-cylinder usually under-seat – longer line, more bleed hassle.

Most street builds stay front-disc only – rear drum is plenty when front does 70 % of work.

7. Hidden Hydro – Cable-to-Hydraulic Converter (No Welding)

Part: Clarks CVR (£45) – cable pulls a mini master-cylinder inside the lever.

• Bolt-on for any 22 mm bar.
• Gives 75 % of hydraulic power with zero frame mods.
• Bleeds like a bicycle brake – perfect for first-time converter.

8. Common Screw-Ups & How to Avoid Them

Mistake	Consequence	Fix
Caliper 2 mm off hub centre-line	Pulsing lever, uneven pad wear	Use dial gauge, shim bracket
Old 6 V battery + HID light	Voltage sag, brake-light dim under stop	Swap to 12 V lithium
Forgot to lock-wire caliper bolts	Bolt backs out, caliper hits spokes	0.9 mm wire, figure-8 pattern
Used copper grease on slider pins	Rubber swells, caliper seizes	Use silicone brake grease only

9. Legal & MOT / TÜV / DMV Notes

• UK MOT: disc must be within 2 mm of hub run-out, pads > 1.5 mm, no fluid leaks.
• Germany (TÜV): conversion needs ABE certificate or Einzelabnahme – bolt-on SIP kit has ABE, custom radial needs individual inspection.
• USA: no federal issue; state inspection wants working brake-light and no visible fluid leaks.

Keep old drum and receipt – some insurers give discount for "safety upgrade".

10. Quick-Fire FAQ

Q1. Will a 12 mm axle take a modern 15 mm disc hub?

No – either sleeve-spacer (£20) or swap to 15 mm axle (£60).

Q2. Can I keep the original 6 V brake-light switch?

Yes – use hydraulic pressure switch (M10 x 1.0 banjo), wired same as old switch.

Q3. Do I need a bigger battery for hydraulic brake?

No – master-cylinder is human-powered, no extra current draw.

Q4. Is copper pipe OK for brake line?

No – use Cunifer (copper-nickel) or stainless braided – copper work-hardens and cracks.

Q5. Will disc conversion affect classic insurance?

Most UK insurers (Footman James, Hagerty) class it as "safety improvement" – no premium hike, but declare it.

Bottom Line

Bolt-on kits give modern stopping power in an afternoon; hidden hydro keeps stock aesthetics; full radial turns your 1960 scoot into a braking weapon.

Pick the level that matches your wallet, wrench skill and inspection laws, torque everything twice, bleed until the lever is rock-solid, and ride like it's 2024 – because your brakes now are.
