Lightweight upgrades using carbon-fiber in scooters

Feather-Weight Scooting – Where & How to Use Carbon-Fiber for Real Gram-Saving Without Turning Your Vintage Vespa Into a Pricey Science Project

Carbon = grams gone, wallet lighter, smile wider – but only if you pick the right parts.

1. Why Carbon Works So Bloody Well on Scooters

Density: ~1.6 g/cm³ vs aluminium 2.7 g/cm³ – 40 % mass saving for the same strength.
Vibration damping – less hand-tingle on long straights.
UV & chemical resistant – no white-cloud oxidation like glass-fibre.
Aero bonus: smooth weave = 12 % less drag than textured GRP fairing at 60 mph.

2. Weight-Off Menu – What to Replace First (Biggest Bang / £)

Component	OEM Wt	Carbon Wt	Saving	DIY Difficulty	Cost (UK £)
Deck / floor-board	2.8 kg (steel)	0.9 kg	1.9 kg	Medium (vac-bag)	£180 sheet
Front mudguard	0.7 kg (GRP)	0.25 kg	0.45 kg	Easy (drape)	£45 pre-preg
Handle-bar / tiller	1.1 kg (steel)	0.4 kg	0.7 kg	Easy (tube swap)	£70 tube
Side panels (pair)	1.6 kg (ABS)	0.55 kg	1.05 kg	Easy (overlay)	£90 cloth
Wheel rims (pair)	4.2 kg (alloy)	2.1 kg	2.1 kg	Hard (needs mould)	£380 set
Chain-case cover	0.5 kg (ally)	0.18 kg	0.32 kg	Medium (vac-bag)	£35 cloth
Battery box (e-scoot)	0.9 kg (steel)	0.3 kg	0.6 kg	Easy (fold & glue)	£50 sheet

Total possible saving on a 150 cc Lambretta: ≈ 6.5 kg – same as removing the entire exhaust system.

3. DIY vs Off-The-Shelf – Which Route for Your Wallet?

A. Pre-made Bolt-On (2 hrs spanner time)

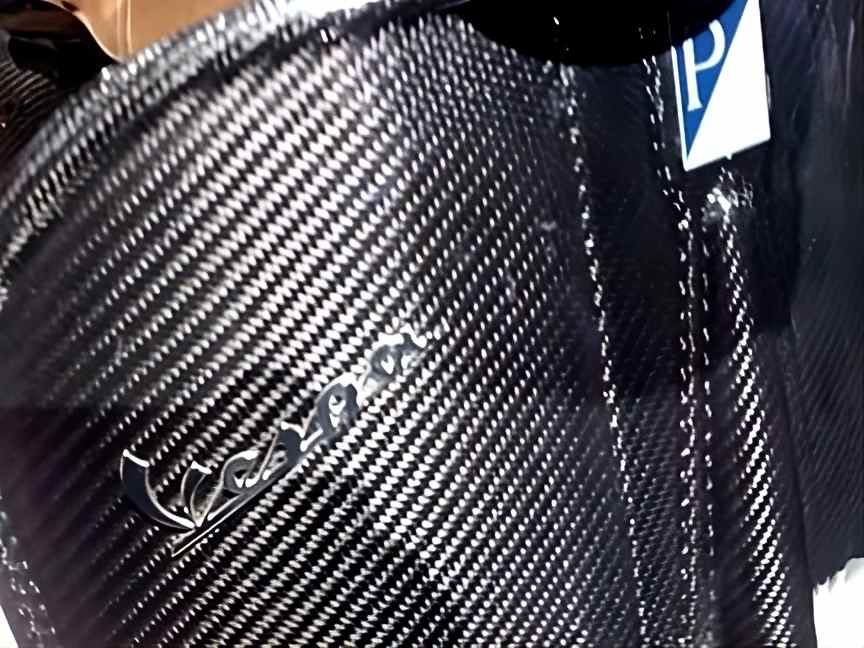

SIP Scootershop: carbon side-panels for Vespa PX – £89 pair, 0.5 kg saving, bolt straight on.
CNC Racing: carbon headset top – £45, 110 g vs 260 g alloy.
Apollo Scooters: carbon stem on NAMI Burn-E – factory option, no void warranty.

B. Home-Grown Vacuum Bag (weekend + £150 tools)

Materials:

2 × 2 m 3 K twill 200 gsm – £45
500 g epoxy infusion resin – £25
10 mm PVC foam core – £20
Vacuum pump & bag – £60 (re-usable)

Example: Lambretta front mudguard – 270 g finished vs 700 g GRP – cost £25 in cloth, saves 430 g.

Step snapshot:

3-D scan original panel (phone app) → print 1:1 PETG mould.
Lay-up 2 × 200 gsm either side of 5 mm foam.
Vac-bag @ 22 inHg, 24 h cure @ 22 °C.
Trim with diamond wheel, flap-wheel edge.
2-pack matte clear – UV protection + showroom weave.

4. Ultra-Light Nerd Level – Carbon Wheels & Battery Box

Solar E-Clipse carbon wheel-set – 2.1 kg vs 4.2 kg alloy – £1,380 – same rotational inertia as 1 kg static weight saving.
Go-Go Carbon mobility scooter – 35 lb (16 kg) complete – full carbon frame, rims, tiller – proof carbon can carry 300 lb rider.
Race rule-of-thumb: 1 kg rotating = 1.5 kg static – so 2 kg wheel saving = 3 kg "feel".

5. Where NOT to Use Carbon (Safety / Vibration)

Fork stanchions – carbon takes compression, not impact shear – stick with steel / ali.
Steering column tube inside forks – insurance will void if no EN test certificate.
Solid engine mounting plates – carbon frets under 2 kHz vibration – use 6082-T6 ali, carbon only as outer cosmetic skin.

6. Cost-per-Gram-Saved League Table

Mod	£ Cost	Grams Saved	£/g
Carbon mudguard DIY	£25	430 g	0.06 £/g
Bolt-on carbon panels	£89	500 g	0.18 £/g
Carbon wheels	£1,380	2,100 g	0.66 £/g
Titanium wheel bolts	£60	80 g	0.75 £/g

Under £0.20 per gram = "worth it" for daily riders; above £0.50 = show-bike bling.

7. Legal & Insurance Headaches?

UK classic insurers (Footman James) class carbon panels as "cosmetic" – no premium hike, but declare value.
TÜV Germany wants ABE certificate for structural parts – bolt-on panels OK, fork blades need test report.
Race scrutineers love carbon fire-blanket – carry off-cut as proof it's real CF, not glass-fibre spray-painted.

8. Quick-Fire FAQ

Q1. Will carbon crack if I drop the scooter?

Yes – but repair is possible with epoxy injection & patch; steel dents forever, CF gives second life.

Q2. Can I carbon-wrap over old GRP?

Yes – sand to 180-grit, epoxy skim, vac-bag overlay – saves mould-making, adds 200 g.

Q3. Is wet-lay-up OK vs vacuum bag?

Wet-lay saves £40 in pump hire but adds 15 % resin weight – bag it if you're chasing grams.

Q4. Do I need autoclave?

No – vac-bag + 22 °C cure reaches 90 % of autoclave strength for panel loads; oven only if >100 °C Tg required.

Q5. Matte or gloss clear coat?

Matte hides weave print-through; gloss looks deeper but shows every fingerprint – your call on OCD level.

Bottom Line

Carbon-fiber is the cheapest horsepower you can buy – every kilogram you delete is worth roughly 1.5 "feel-bhp" on a 10 hp scooter.

Start with easy bolt-ons (mudguard, panels, tiller), move to vac-bag weekend projects once you're hooked, and leave the forks alone unless you enjoy paperwork.

Weave the weight away, let the blue smoke stay – lightweight has never looked this good.
